| TECHNICAL SPECIFICATIONS | |
|---|---|
| 4 Way Protection Circuit | Thermal, Voltage, Speaker, DC |

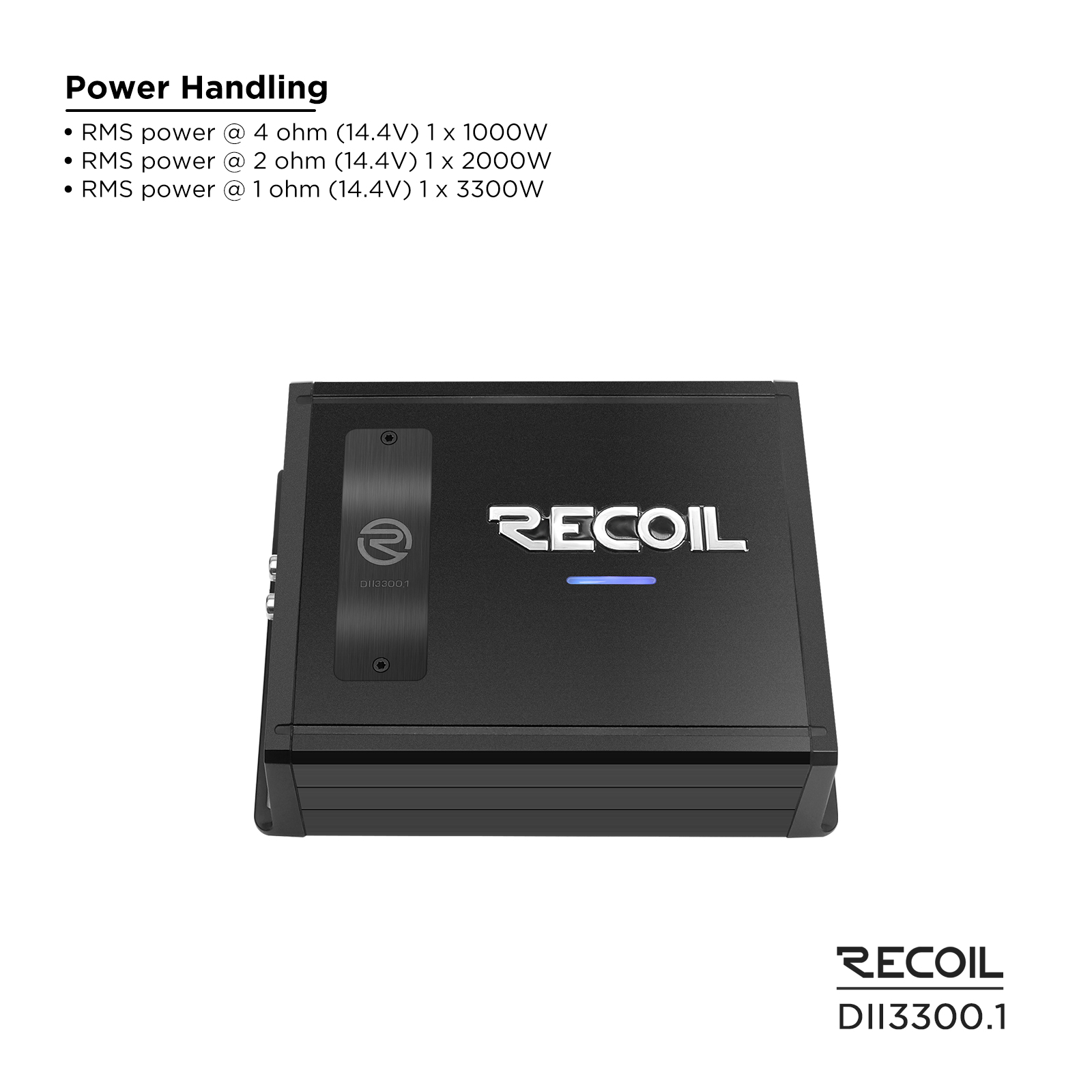

| Power @1 Ohm (14.4V) | 3300W x 1 |
| Power @2 Ohm (14.4V) | 2000W x 1 |
| Power @4 Ohm (14.4V) | 1000W x 1 |
| Operating Voltage | 9V–16V |
| Idling Current (Power On) | 2200mA |
| Frequency Response | 10Hz–250Hz |
| Signal to Noise Ratio (SNR) | 92dB |
| THD+N (@1W) | <0.12% |
| Input Sensitivity (Low Level) | 230mV – 2.5V |
| Input Sensitivity (High Level) | 1.1V – 12V |
| Bass Boost | 35Hz – 90Hz / 0-12dB |
| Crossover LPF | 40Hz-250Hz |
| Crossover HPF | 10Hz-50Hz |
| Bass Remote | Yes |
| Clip Indication | 1% |
| Fuse Rating | 230A |

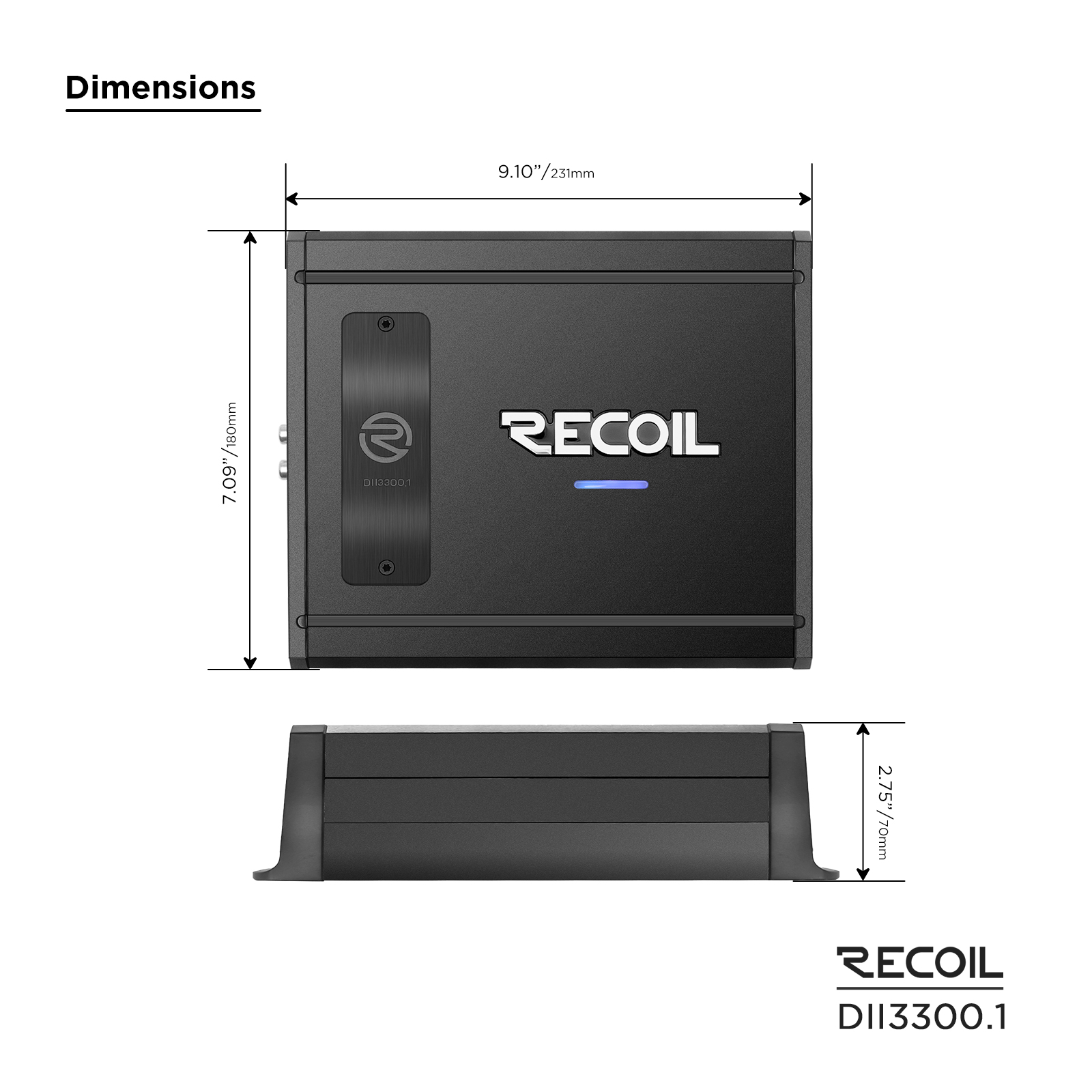

| Dimensions | 231mm x 180mm x 70mm |

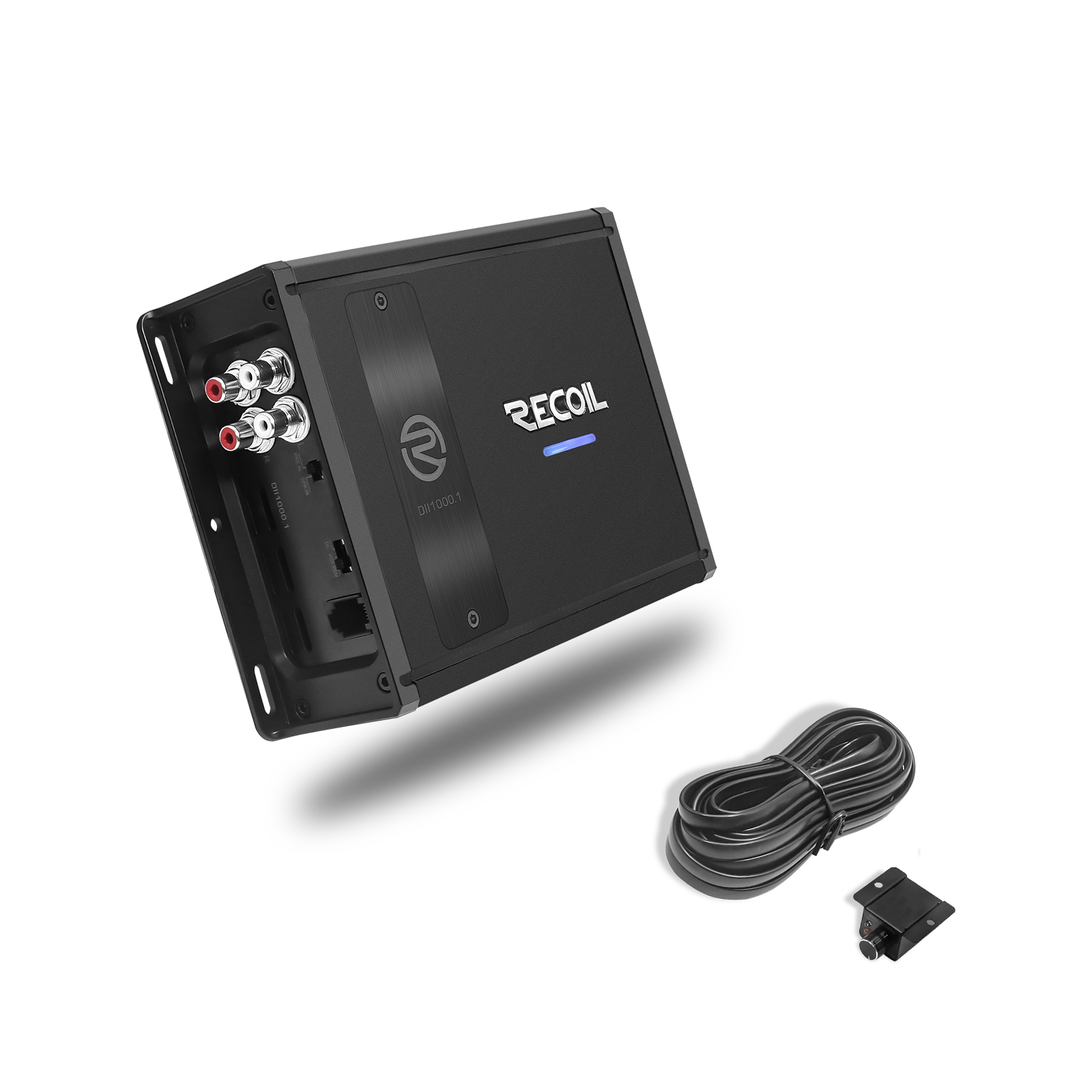

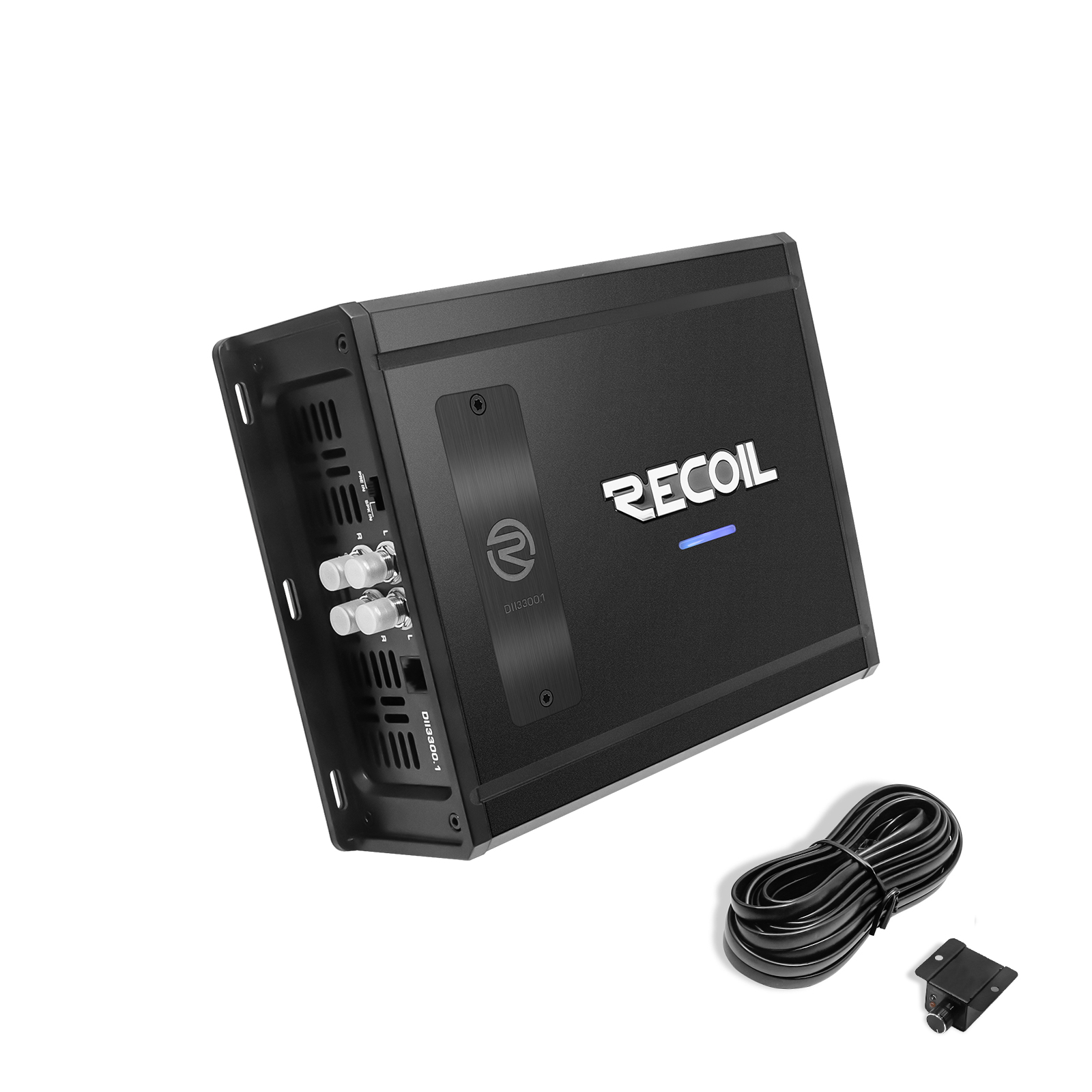

Amplifier DII3300.1
The small size of Recoil DII series amplifiers might cause some concern, but that fades the moment they’re connected to an audio system. Utilizing the latest Class D technologies, these ultra-compact DII series amplifiers are designed to deliver huge audio power with incredible efficiency and above-average quality. For your convenience, the DII amplifiers’ controls are located on top of the amplifier, under a small panel.
• Recoil’s proprietary Class D technology
• Stable 4/2 Ohm multi-impedance power
• 4 Ohm bridgable
• Selectable operation mode (REM, VOX, DC)

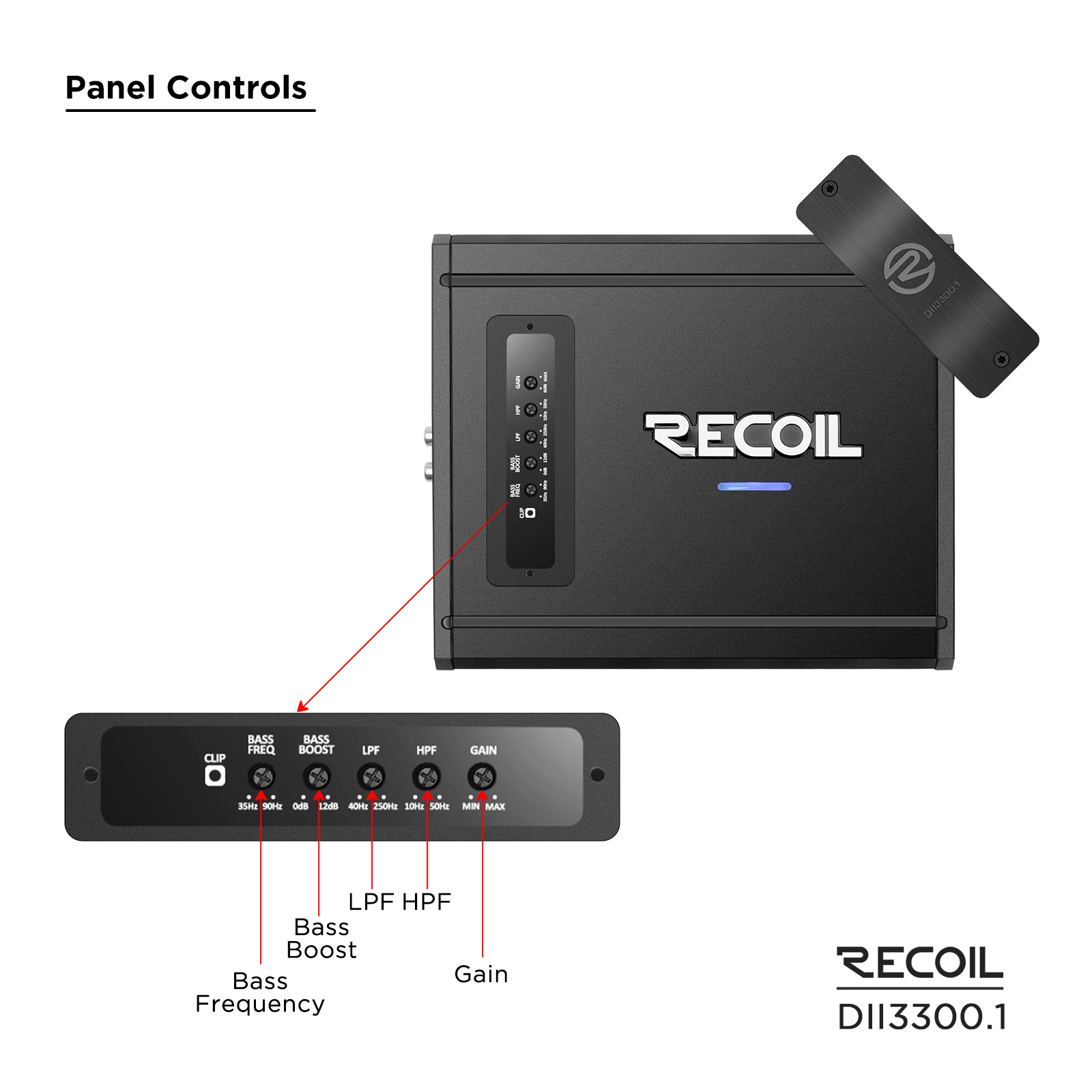

• Control panel located on the top surface

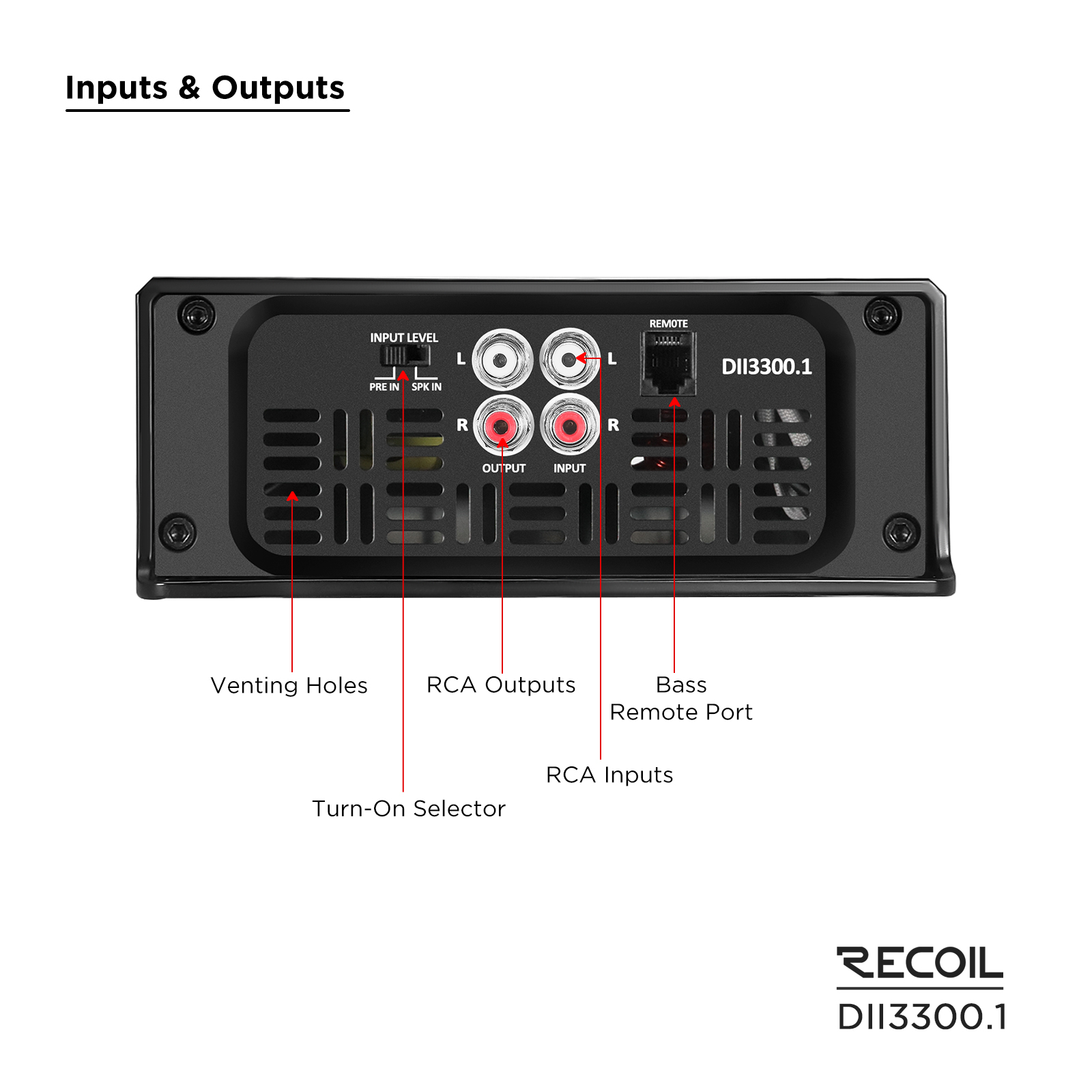

• 2/4-channel input switch
• RCA pass-through outputs
• Clipping detection and clipping indicator LEDs
• Mono amplifiers are equipped with a remote bass control
