| TECHNICAL SPECIFICATIONS | |
|---|---|
| 4 Way Protection Circuit | Thermal, Voltage, Speaker, DC |
| Power @1 Ohm (14.4V) | 680W x 1 |
| Power @2 Ohm (14.4V) | 500W x 1 |
| Power @4 Ohm (14.4V) | 260W x 1 |
| Operating Voltage | 9V–16V |
| Idling Current (Power On) | 690mA |
| Frequency Response | 10Hz–300Hz |
| Signal to Noise Ratio (SNR) | 94dB |
| THD+N (@1W) | <0.23% |
| Input Sensitivity (High Level) | 200mV – 12V |

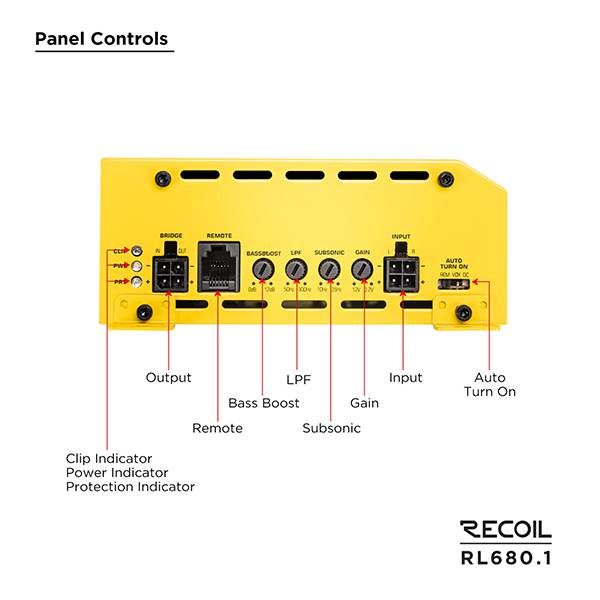

| Bass Boost | 0-12dB |
| Subsonic Filter | 10Hz – 35Hz |
| Crossover LPF | 50Hz – 300Hz |
| Bass Remote | Yes |
| Clip Indication | 1% |
| Fuse Rating | 40A |

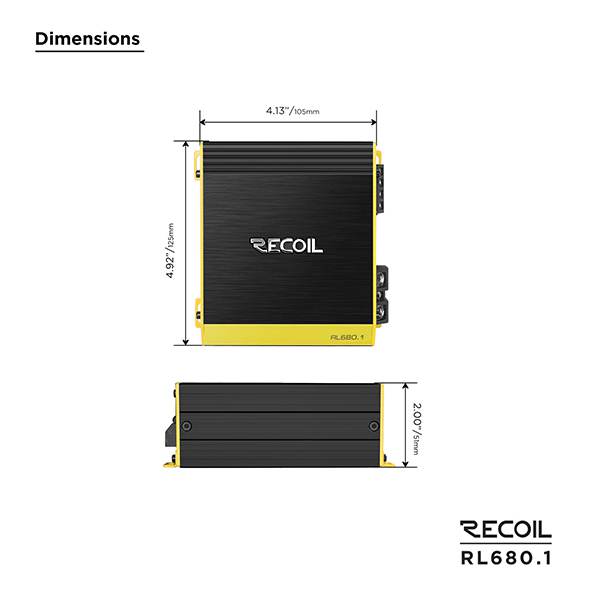

| Dimensions | 105mm x 125mm x 51mm |

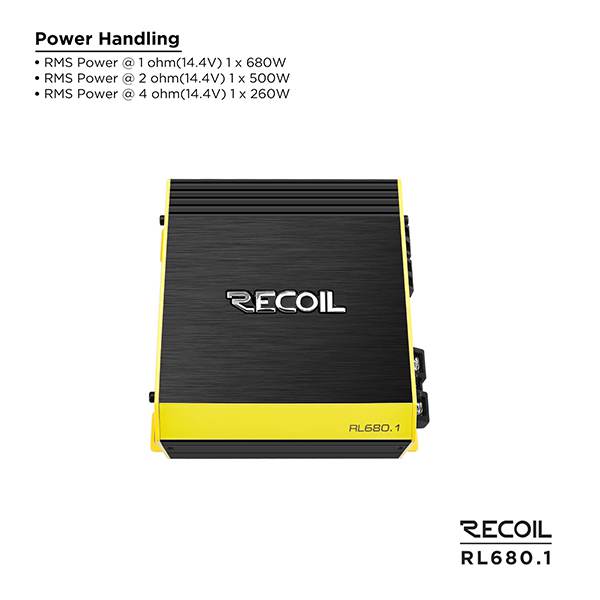

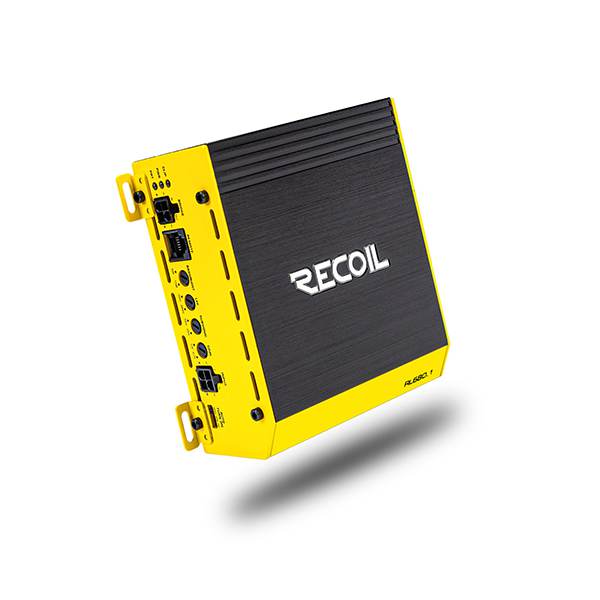

Amplifier RL680.1
Recoil L-series amplifiers are designed with one function in mind: performance. These amplifiers are a cost-effective solution for anyone who wants to upgrade their car audio system. Available in 4-channel and mono versions, L-series amplifiers will let you boost your sound without breaking the bank.
