| ALOC2 – TECHNICAL SPECIFICATIONS | |
|---|---|
| Number of Channels | 2 |
| Input Voltage | Up to 20V |
| Output Voltage | Up to 10V |
| Output Adjustment | Yes |
| Amplifier Turn-on Signal | 12V |
| Frequency Response | 20Hz – 20kHz |

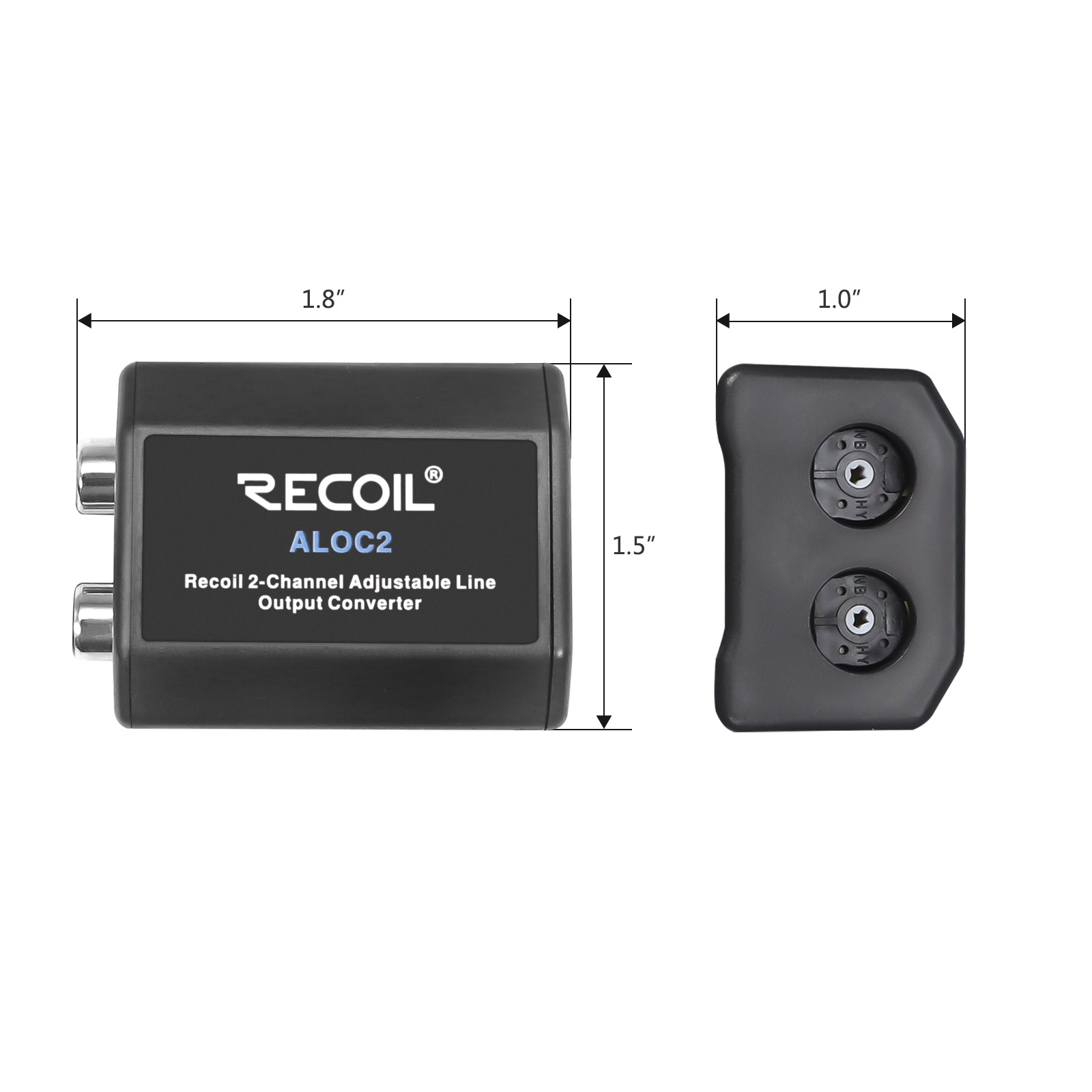

| Dimensions | 53mm x 39mm x 27mm |
Converter ALOC2

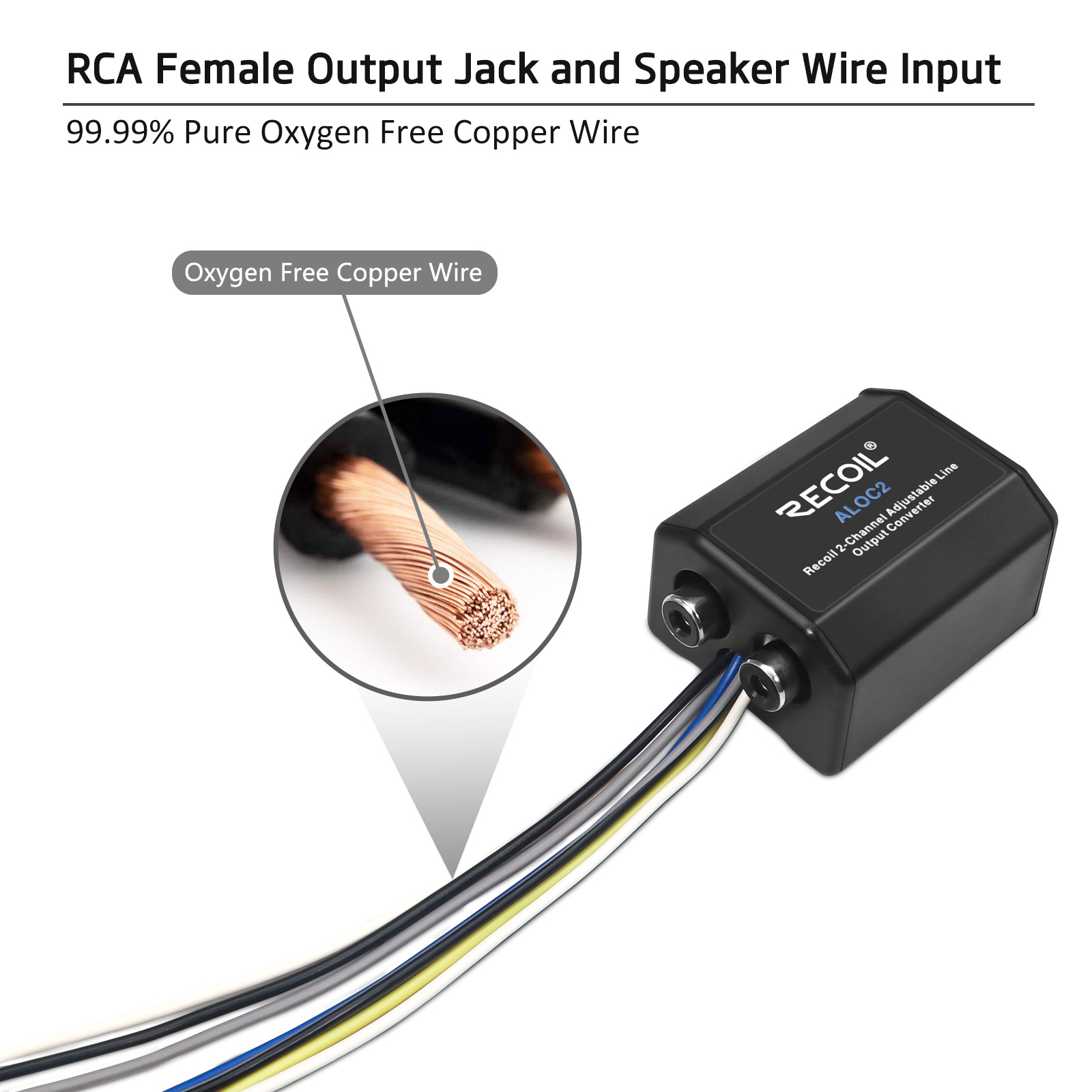

The Recoil Audio adjustable, two-channel line output converter is a line output converter for factory radios with up to 50W of power per channel. It accepts a speaker-level input signal and provides a stereo RCA output signal, allowing you to add an audio amplifier. It provides 12V for the amplifier’s remote turn-on. Transformer isolation ensures optimal sound and performance. The unit works with most factory radio amplifiers.
